Designed
in India,
Built for the World.

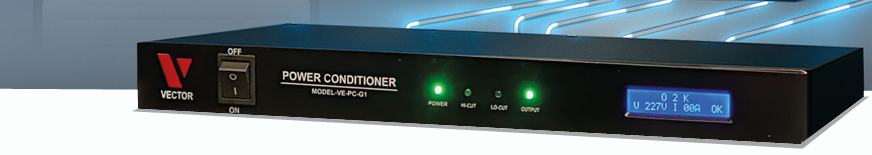

The VE-PC-G1 is a smart, rack-mounted power conditioner engineered for modern AV Racks, Server
Rooms, Home
Theatres, Data Centres, Indigenously designed and manufactured, it delivers more than just surge
protection - it offers intelligent control, remote monitoring, and proactive insight across
every system it powers.
Experts in Vector PC Solutions
What It Delivers
- Protects your AV gear from surges and unsafe voltage
- Works seamlessly with any third party control system and the Teampresence Tool
- Sends real-time alerts
- Tracks energy use and emissions
- Lets you monitor and before problems occur control each outlet remotely

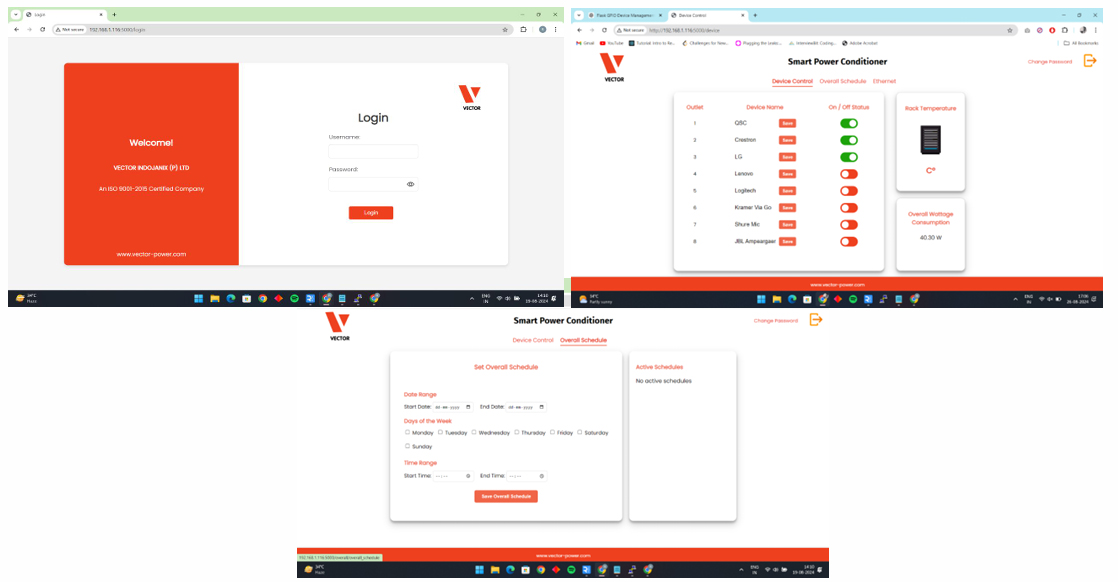

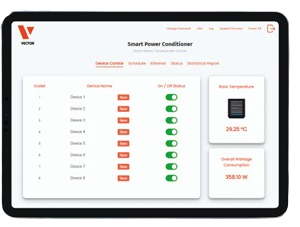

- Enables remote monitoring via a web-based GUI with password-protected access
What
Makes
Vector VE-PC-G1 Different
Remote
Monitoring:
Live data on voltage, temperature, and energy
Energy
Carbon Logs:
Daily usage reports for ESG compliance
Open
API Integration:
Easy sync with AV control & building systems
Extreme
Voltage Shutdown:
Instant cut-off before equipment damage
- 1 x VE-PC-Gl
- 1 x Power Supply Cable I IEC C19 , max 10A)
- 1 x Temperature Sensor
- 8 x IEC C13 to IEC 14 Power Cable
- 2 x Mounting Ear
- Quick Start Guide
- Additional Accessory:
5 outlets IEC320 C13 to 3 Pin Universal socket Strip
| Product Specification |
|---|
| VE-PC-G1 |
| AC Input Voltage Range | 170 - 250VAC, 50Hz. |
| Maximum AC Current Rating | 10A |
| Output Voltage | 230VAC |
| No. of Outlets | 8 |
| Maximum Load Capacity | 2300 Watts |
| Voltage Protection | Low-Cut off:170 VAC High Cut off: 250 VAC with auto reset capabdity |
| Network Port | 10/100 MBit/Ethernet |

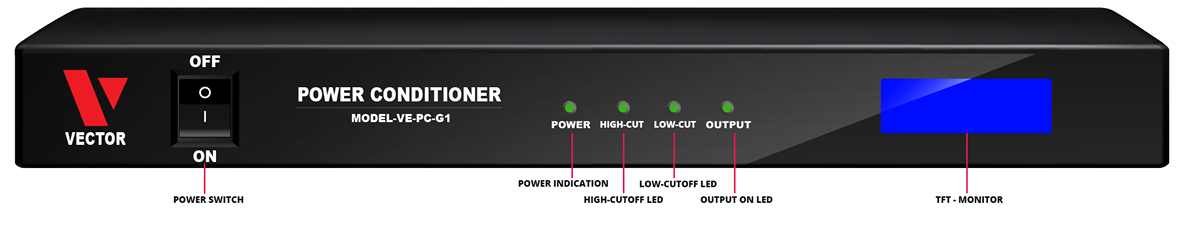

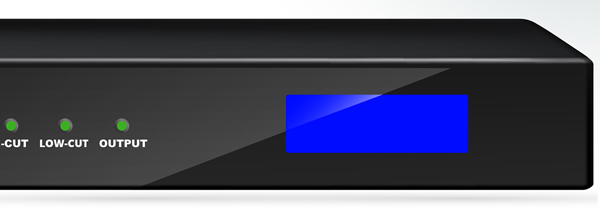

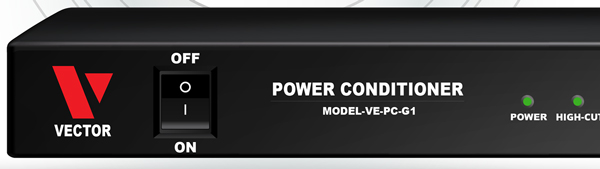

| Front Panel Ports | lx Main Power On /off Switch lx Power Supply Indicator lx Low Cut off Indicator lx High Cut off Indicator lx Multi-Function LCD Display |

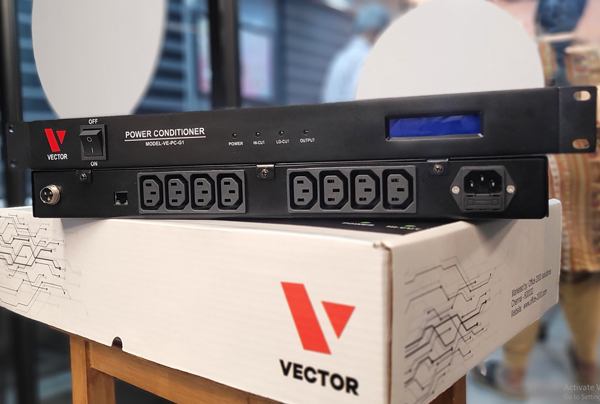

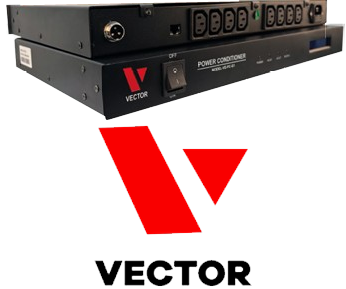

| Back Panel |
lx Power Connector ( IEC C14 ) lx Ethernet Connection (ft) 45 lx Temperature Sensor 8 x Outlets |
| Weight | 3.8 kg |
| Temperature Range 100B Load | 0 to 50° C |
| Product Dimensions |
|---|
| Length | .5 mm |
| Height | 45 mm |
| Depth | 280 mm |
| Rack Mountable | 1 U |
| Housing | Powder coated, Galvanized Sheet Metal |
| Surge Protection | Multi Stage |
| Operating Temperature | 0 - 50°c |
| Storage Temperature | 20 - 70°c |
| Relative Humidity | 0.95% |
| Safety Standard | CE Mark |
| Warranty | 3 Years Replacement Warranty |
